Kev Muaj Peev Xwm Siab Mos Mos
Semixlab's High Purity Soft Felt yog tsim tshwj xeeb rau kev siv thermal field hauv kev tsim khoom semiconductor. Ua los ntawm cov khoom siv carbon-based zoo thiab purified los ntawm kev ua tiav siab heev, cov khoom siv mos mos no muab cov qib impurity qis heev, kev rwb thaiv tsev thermal zoo heev, thiab kev hloov pauv zoo heev. Nws cov qauv yooj ywm tso cai rau kev haum meej hauv cov qauv thermal field nyuaj, ua kom muaj qhov kub thiab txias zoo tshaj plaws thiab cov txheej txheem ruaj khov. Tos ntsoov rau koj qhov kev nug.
Hauj lwm
Vim li cas kev huv huv thiaj tseem ceeb hauv cov teb thermal? Thaum tsim cov tiam neeg thib peb?
Cov khoom siv semiconductor (SiC/GaN), cov ntaub thaiv rwb thaiv tsev ib txwm muaj nrog cov tshauv ntau (ntau dua 500ppm) feem ntau tso cov hlau tsis huv ntawm qhov kub siab dua 1600 ° C. Qhov no ua rau muaj qhov tsis zoo ntawm cov lattice thiab txo cov wafer yield.
Cov ntaub mos mos ntawm Semixlab siv peb cov txheej txheem ntxuav tshuaj lom neeg kub siab, ua rau tag nrho cov khoom tsis huv qis dua 5ppm. Qhov no tsis yog tsuas yog ua kom muaj ib puag ncig huv si xwb tab sis kuj muab kev ruaj khov thermal uas xav tau rau kev loj hlob ntawm cov siv lead ua siv lead ua ntev.
Semixlab Ntug
Peb yog ntau tshaj li tus neeg muag khoom - peb yog koj tus khub koom tes hauv thaj chaw kub siab. Tsim los ntawm CAS cov kws tshawb fawb, peb ua tau zoo hauv kev sib xyaw cov kev daws teeb meem rwb thaiv tsev nrog CVD coatings (TaC / SiC). Peb tsis yog tsuas yog muab cov ntaub rwb thaiv tsev xwb; peb ua kom koj lub tshav kub tag nrho zoo dua siv cov cua sov graphite thiab porous TaC kom txo kev siv hluav taws xob. Peb lub tshuab CNC 5-axis hauv tsev ua rau cov khoom siv kho kom haum, ua ntej sib dhos uas phim koj lub cub tawg tsim nrog xoom qhov yuam kev.
Specifications
| Properties | Khoom siv zoo PAN-Based Felt | Cov ntaub Viscose uas muaj cov qauv siab heev |
| Tag nrho cov impurities | ≤5 ppm (GDMS) | ≤10ppm |
| Cov ntsiab lus carbon | ≥99.99% | ≥99.95% |
| Kev ceev ntau | 0.10-0.15 g / cm³ | 0.08-0.12 g / cm³ |
| Kub Txias (@1000°C) | 0.12 - 0.15 W/m·K | 0.09 - 0.13 W/m2·K |
| Max Service Temp. | 2800 ° C (Inert/Nqus Tsev) | 2600 ° C (Inert/Nqus Tsev) |
| Txheem Thickness | 3mm / 5mm / 10mm / 20mm | 3mm / 5mm / 10mm / 20mm |
daim ntawv sau npe
Cov ntawv thov tseem ceeb
Field-Proven Performance:

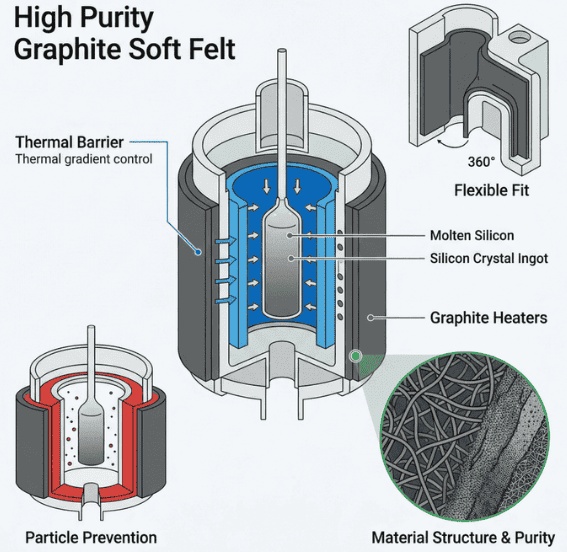

Tsim los rau SiC & Silicon kev loj hlob (PVT / CZ), peb lub felt ua haujlwm ua lub thermal stabilizer los tiv thaiv crystal dislocations. Hauv MOCVD / Epitaxy (sib xws nrog Aixtron, NuFlare), nws tseem nyob hauv qab corrosive H2 / NH3 ntws, thaiv impurity diffusion. Rau Fiber Drawing thiab Sapphire Sintering, nws cov khoom xoom-outgassing ua kom muaj kev ruaj ntseg ntawm lub tshuab nqus tsev thiab tiv thaiv kev poob qis.
Kev Tshaj Loj (Competitive Advantage)
Core Zoo
Kev huv siab heev (<5ppm), kuaj los ntawm GDMS. Tswj hwm Al, B, Fe thiab lwm yam khoom tsis huv kom tsis txhob muaj kev sib kis hauv kev loj hlob epitaxial.
Zoo heev thermal rwb thaiv tsev: Kev ua kom sov tau qis li 0.12 W/m·K ntawm 1000°C, txo qhov poob cua sov thiab tswj qhov hloov pauv thermal hauv ±1°C.
Kev tso cov khoom me me tsawg: Cov fiber zoo tshaj plaws thiab kev kho qhov chaw txo cov hmoov av hauv lub voj voog nqus tsev, tiv thaiv CVD (TaC / SiC) graphite susceptors thiab cua sov.
Kev yooj ywm thiab haum siab: mos thiab compressible rau 360 ° seamless qhwv rau ntawm cov cub tawg nyuaj, tiv thaiv kev xau cua sov los ntawm cov rwb thaiv tsev nruj.
FAQ
Cov Lus Nug Txog Kev Txhim Kho
Q: Semixlab cov khoom siv mos mos ua rau lub neej ua haujlwm ntawm cov cua sov graphite zoo dua li cas?
A: Los ntawm kev muab lub tiv thaiv cua sov ruaj khov dua, peb cov ntaub mos mos txo qhov hnyav ntawm lub tshuab cua sov kom tswj tau qhov kub thiab txias, yog li ua rau qeeb qeeb ntawm cov pa roj carbon sublimation thiab oxidation ntawm cov khoom cua sov graphite.
Q: Koj lub siab puas siv tau rau hauv cov chaw muaj roj ntau?
A: Yog. Rau cov txheej txheem ua haujlwm siab-gas-velocity (xws li MOCVD), peb pom zoo kom peb cov khoom siv PAN-based high-density lossis cov tshuaj sib xyaw nrog lub ntsej muag graphite foil, uas tiv thaiv kev yaig ntawm cov fiber thiab ua kom tsis muaj kev sib kis ntawm cov khoom me me.
